CyBox ES-R 11U

Unmanaged railway Ethernet switch with 11 ports and optional Power-over-Ethernet (PoE). Compliant with EN 50155.

11 ports

11 Ports

Fast 1 Gbps

1 Gbps

PoE for edge devices


11 Ports

11-port switch for Gigabit Ethernet with highest data throughput. The M12 network connections distribute data from one or two uplink ports to up to 10 or 9 devices respectively.

High-efficiency Layer 2 switch for fast and reliable networks with intelligent power management.



Optionally, the connected edge devices can also be powered via Power-over-Ethernet (PoE) according to IEEE 802.3af/at with up to 30 W per port.

Supported by a full set of robust M12 connectors for reliable connections.


24 - 110 VDC

The integrated wide-range power supply is fully compliant to EN 50155, Class S2 and tolerates interruptions of up to 10 ms.

The Ethernet switch is designed according to the international railway standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

EN 50155

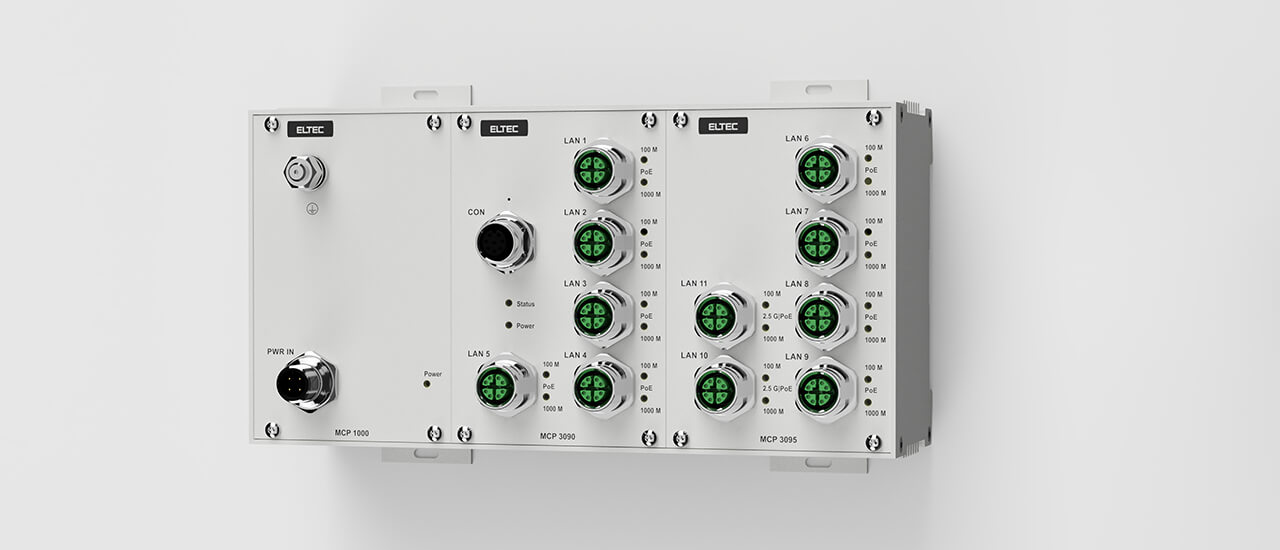

Ethernet switch CyBox ES-R 11U - railway Ethernet switch with 11 ports and PoE
Ethernet switch CyBox ES-R 11U - railway Ethernet switch with 11 ports and PoE
Ethernet switch CyBox ES-R 11U - railway Ethernet switch with 11 ports and PoE

Further Technical Data

  • 2x 2.5 and 9x 1 Gigabit Ethernet interfaces with 11 ports
  • M12 X-coded Ethernet sockets
  • IP40 housing
  • Housing dimensions 214 x 112 x 65 mm
  • Weight 2500 - 3000 g
  • Temperature range -40 °C bis + 85°C
  • Integrierted firmware for management and configuration

Ethernet switch for high-speed trains
Ethernet switch for intercity trains
Ethernet switch for trams
Not qualified for buses

Your Advantages


Connection of access points, routers, cameras and more


Highest data throughput with Gigabit speed

Worldwide Use

Wide range power supply for worldwide use in every type of train

Less Cables

PoE saves additional power cabling


Stable connections thanks to M12 connector

EN 50155

Railway-compliant, robust design

Made in Germany

Designed and manufactures in Germany


2x 2.5 Gbps and 9x 1 Gbps 2x 2.5 Gbps and 9x 1 Gbps
Unmanaged Unmanaged
 PoE  -



  • Cabels
  • Power supply

Evaluation Kit

Evaluation Kit for railway Ethernet switch CyBox ES-R 11U

Ethernet Switch


including all necessary accessories

  • Cabels
  • Power supply
