CyBox AP 2-O

Outdoor Wi-Fi access point with IEEE 802.11ac. Compliant with EN 50155.

Faster Wi-Fi

Faster Wi-Fi

Dust-proof and waterproof

IP67

Fast 1.3 Gbps

1.3 Gbps


11ac
with up to
1,3 Gbps

The Wi-Fi standard IEEE 802.11ac with 3x3 MIMO enables a throughput of up to 1.3 Gbps. When using two Wi-Fi modules, the bandwidth even doubles to up to 2.6 Gbps. The wireless access point is backwards compatible with the Wi-Fi standard IEEE 802.11n for older devices and a longer range.


Dual radio version with 2.4 GHz and 5 GHz standard. 802.11ac uses the 5 GHz band and is backwards compatible with 802.11n with 5 GHz and 2.4 GHz for older end devices.

2.4 GHz
and
5 GHz


24 - 110 VDC
or
PoE

The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms. As an option, power can be supplied via Power-over-Ethernet (PoE).


For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.

Daisy Chaining


Web and Remote Interface

Easy-to-use web interface for easy remote configuration of the access points, monitoring of settings, and for installing updates. Maintenance and monitoring of the devices via remote control systems are also possible with SNMP and shell scripts.


A configurable firewall protects personal data of client devices against unauthorized access (client isolation) via multi-level client/AP isolation and supports the secure and interference-free data exchange with the Internet. Unauthorized access is prevented both to end devices that have dialed into the same access point and across devices to end devices that are logged into different Westermo Eltec access points.

Cyber Security


EN 50155

The access point is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.


The robust and waterproof IP67 housing is especially designed for outdoor use. It is suitable for any mounting location that is exposed to moisture and harsh environmental conditions.

IP67

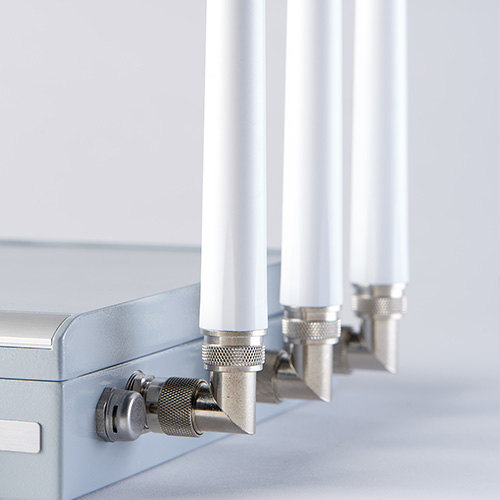

Outdoor Wi-Fi access point CyBox AP 2-O - wireless access point with IEEE 802.11ac and 3 x 3 MIMO
Outdoor Wi-Fi access point CyBox AP 2-O - wireless access point with IEEE 802.11ac and 3 x 3 MIMO
Outdoor Wi-Fi access point CyBox AP 2-O - wireless access point with IEEE 802.11ac and 3 x 3 MIMO

Further Technical Data

  • 2 Ethernet interfaces with 1 Gbps
  • USB port
  • Simple Network Management Protocol (SNMP)
  • Antenna screw connections with N plugs
  • Robust IP67 aluminum housing
  • Housing dimensions 200 × 65 × 300 mm
  • Weight 1550 g
  • Temperature range -40 °C to + 85°C

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • Multi-level client/AP isolation
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wi-Fi router for high-speed trains
Wi-Fi router for intercity trains
Wi-Fi router for trams
Not qualified for buses

Your Advantages

256 Clients

Highest performance on smallest footprint: Up to 256 clients per access point

Lifecycle Management

Every generation in the same footprint for scalability, long-term availability and easy upgrades

Worldwide Use

Country-specific Wi-Fi standards for worldwide use in every type of train

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth distribution

Fast Roaming

Smooth, lossless roaming from access point to access point

Web Interface

Easy-to-use web interface for remote settings and updates

Backbone Routing

Intelligent distribution of clients to access points and fair bandwidth distribution

Made in Germany

Designed and manufactured in Germany


Variants

CYAPO-2090
2 x Wi-Fi
IEEE 802.11ac
up to 1300 Mbps
1 + 1 Gigabit Ethernet
M12, X-coded
Dual-Core CPU 1.2 GHz
1 GB RAM
128 MB Flash
24 - 110 VDC
PoE

Downloads

Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation kit for wireless access point CyBox AP 2-O

Wireless Outdoor Access Point

EVAPO-2000

with 2 x Wi-Fi 11ac and Dual-Core CPU
including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
