CyBox AP 2-W

Wi-Fi access point with IEEE 802.11ac and performance boost due to faster CPU. Compliant with EN 50155.

Faster Wi-Fi

Faster Wi-Fi

Future-proof with 10 GbE option

10 GbE

Fast 1.3 Gbps

1.3 Gbps

1.3 Gbit/s

A faster CPU now enables the full throughput of 1.3 Gbps of the Wi-Fi standard IEEE 802.11ac with 3x3 MIMO. When using two Wi-Fi modules, the bandwidth is even doubled to up to 2.6 Gbps. The wireless access point is backwards compatible with the Wi-Fi standard IEEE 802.11n for older devices and a longer range.

The optionally available unmanaged high-speed Ethernet switch can be used either for redundancy to increase the availability of services, or to connect a second access point.

Ethernet Switch

2.4 GHz
5 GHz

Dual radio version with 2.4 GHz and 5 GHz standard. 802.11ac uses the 5 GHz band and is backwards compatible with 802.11n with 5 GHz and 2.4 GHz for older end devices.

The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms. As an option, power can be supplied via Power-over-Ethernet (PoE+).

24 - 110 VDC

Daisy Chaining

For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.

The optionally available bypass function ensures signal transmission within the backbone even if one of the access points connected in series fails.

Cold Bypass

Web and Remote Interface

Easy-to-use web interface for easy remote configuration of the access points, monitoring of settings, and for installing updates. Maintenance and monitoring of the devices via remote control systems are also possible with SNMP and shell scripts.

A configurable firewall protects personal data of client devices against unauthorized access (client isolation) and supports the secure and interference-free data exchange with the Internet. Unauthorized access is prevented both to end devices that have dialed into the same access point and across devices to end devices that are logged into different ELTEC access points.

Cyber Security

EN 50155

The access point is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

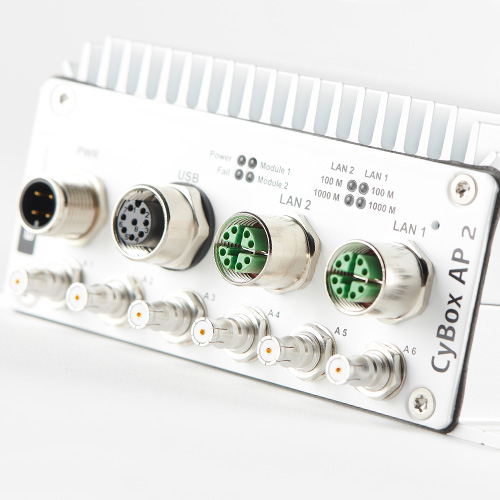

Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO

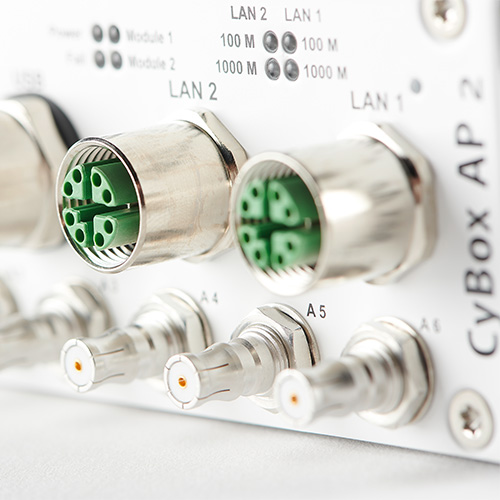

Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO
Wi-Fi Access Point CyBox AP 2 - Wireless Access Point with IEEE 802.11ac and 3 x 3 MIMO

Further Technical Data

  • 2 Ethernet interfaces with 1 Gbps
  • Optional unmanaged Ethernet switch
  • Optional bypass relays
  • USB port
  • Simple Network Management Protocol (SNMP)
  • QLS antenna connections
  • IP40 aluminium housing for wall mounting
  • Housing dimensions 105 × 55 × 206 mm
  • Weight up to 1350 g
  • Temperature range -40 °C to + 85°C


  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wi-Fi router for high-speed trains
Wi-Fi router for intercity trains
Wi-Fi router for trams
Not qualified for buses

Your Advantages

256 Clients

Highest performance on smallest footprint: Up to 256 clients per access point

Lifecycle Management

Every generation in the same footprint for scalability, long-term availability and easy upgrades

Worldwide Use

Country-specific Wi-Fi standards for worldwide use in every type of train

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth distribution

Fast Roaming

Smooth, lossless roaming from access point to access point

Web Interface

Easy-to-use web interface for remote settings and updates

Backbone Routing

Fail-safe routing via embedded relays

Made in Germany

Designed and manufactured in Germany


2 x Wi-Fi 2 x Wi-Fi 2 x Wi-Fi
IEEE 802.11ac IEEE 802.11ac IEEE 802.11ac
1300 Mbps 1300 Mbps 1300 Mbps
1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet
M12, X-coded M12, X-coded M12, X-coded
Dual-Core CPU 1.2 Ghz Dual-Core CPU 1.2 Ghz Dual-Core CPU 1.2 Ghz
128 MB Flash 128 MB Flash 128 MB Flash
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
- - PoE+
Bypass Relay Bypass Relay -
Ethernet Switch - -



  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation kit for wireless access point CyBox AP 2-W

Wireless Access Point


including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
