CyBox GW-P

Wireless gateway with five slots for a variety of Wi-Fi and LTE module combinations with link aggregation and integrated SSD for storing media content. Compliant with EN 50155.

Fast LTE/Wi-Fi

Fast LTE | Wi-Fi

Fast 1.5 Gbps

1.5 Gbps LTE

Fast 1.7 Gbps

1.7 Gbps Wi-Fi


LTE Cat 6

The gateway supports LTE Cat 6 with download speeds up to 300 Mbps and 50 Mbps upload speed. When using five LTE modules in parallel the bandwidth will be increased up to 1.5 Gbps. Four SIM sockets per LTE interface offer multi-provider support or least cost routing.


The multi-user MIMO (MU-MIMO) according to Wi-Fi standard IEEE 802.11ac Wave 2 enables even faster surfing. This increases the maximum throughput from 1.3 GBps to 1.7 GBps with four streams. In addition to the optional Wave 2 module, up to four 11ac modules with 3 x 3 MIMO can be added. The modules are backwards compatible with Wi-Fi standard IEEE 802.11n.

11ac Wave 2
with
1.7 Gbps


2.4 GHz
and
5 GHz

Dual radio version with 2.4 GHz or 5 GHz standard. 11ac can be used at 5 GHz and 11n at 2.4 GHz for older end devices and at the same time a longer range.


Two free sockets allow specific I/O extensions for vehicle buses such as CAN and MVB. Further modules for IBIS, RS232, RS485, ODB2 or digital I/O will follow

I/O


SSD

An optional internal SSD in the m.2 form factor enables storage and access to local data such as timetable information, videos, etc.


The integrated ultra-wide-range power supply is fully compliant with EN 50155, Class S2 and tolerates interruptions of up to 10 ms.

24 - 110 VDC


Daisy Chaining

For long backbone distances daisy chaining can be applied by bridging two Ethernet interfaces eliminating the costs for external switches.


The optionally available bypass function ensures signal transmission within the backbone even if one of the gateways connected in series fails.

Cold Bypass


Web Interface

Easy-to-use web interface for remote configuration of the access points, monitoring of settings, and for installing updates.


A configurable firewall protects personal data of client devices against unauthorized access (client isolation) and supports the secure and interference-free data exchange with the Internet.

Cyber Security


EN 50155

The wireless gateway is designed according to the international standard EN 50155. Components have to meet the strictest environmental requirements, e.g. an extended temperature range. In addition, they must be resilient to shocks and vibrations.

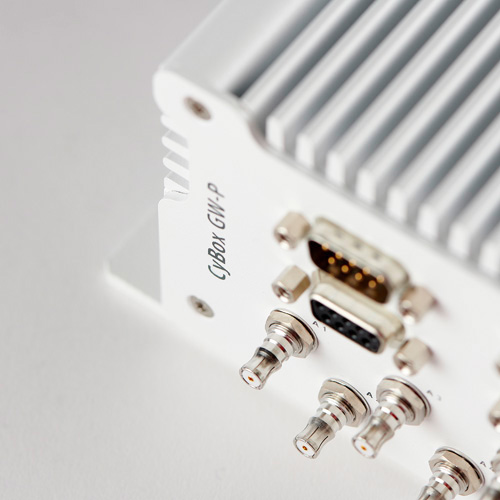

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

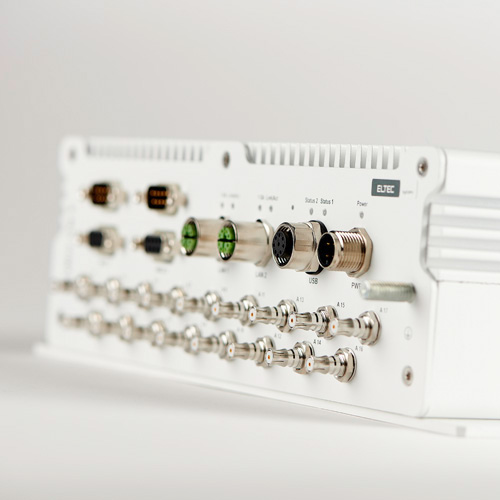

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

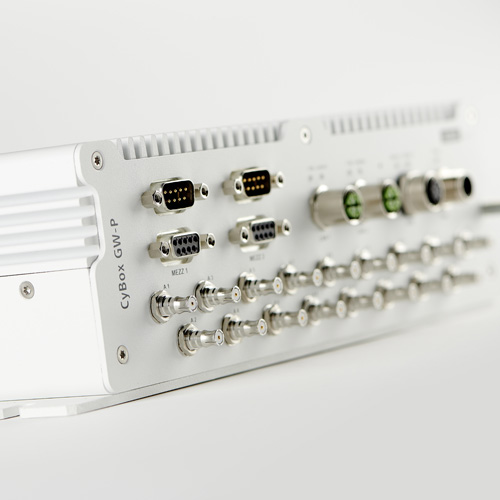

CyBox GW-P - Wireless Gateway with 5 LTE and Wi-Fi modules and SSD

Further Technical Data

  • 2 Ethernet Interfaces with 1 Gbps
  • Optional 1 TB SSD
  • Integrated GPS receiver
  • USB port
  • Simple Network Management Protocol (SNMP)
  • QLS antenna connections
  • IP40 aluminium housing for wall mounting
  • Housing dimensions 284 × 79 × 260 mm
  • Weight 4000 g
  • Temperature range -40 °C to + 85°C

Software

  • Open source software OpenWrt
  • WAN manager for coordinating multiple LTE/WLAN connections
  • OpenVPN tunneling
  • Link Aggregation (LACP)
  • Quality of Service (QoS)
  • ARP filter - no man-in-the-middle attacks
  • Optional secure boot

Wireless gateway for high-speed trains
Wireless gateway for intercity trains
Wireless gateway for trams
Not qualified for buses

Your Advantages

LTE-to-WiFi

Gateway with optional storage medium as media source

Lifecycle Management

Every generation in the same footprint for scalability and long-term availability

Worldwide Use

Country-specific LTE/Wi-Fi standards for worldwide use in every type of train

GPS

Integrated GPS receiver for vehicle tracking

Load Balancing

Intelligent distribution of clients to access points and fair bandwidth allocation

Fast Roaming

Smooth and loss-free from access point to access point

1024 Clients

Highest performance on smallest footprint: Up to 1024 clients per access point

90+ Clients

Simultaneous, uninterrupted live video streaming for more than 90 clients

Made in Germany

Designed and manufactured in Germany


Variants

CYGWP-1131CYGWP-1130CYGWP-1031CYGWP-1030
5 LTE 4 x LTE + 1 x Wi-Fi 3 x LTE + 2 x Wi-Fi 3 x LTE + 2 x Wi-Fi
LTE Cat 6 with 300 Mbps LTE Cat 6 with 300 Mbps LTE Cat 6 with 300 Mbps LTE Cat 6 with 300 Mbps
- IEEE 802.11ac Wave 2 with 1700 Mbps IEEE 802.11ac with 1700 Mbps IEEE 802.11ac with 1700 Mbps
1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet 1 + 1 Gigabit Ethernet
M12, X-coded M12, X-coded M12, X-coded M12, X-coded
Octa-Core CPU 1.8 GHz Octa-Core CPU 1.8 GHz Quad-Core CPU 1.4 GHz Quad-Core CPU 1.4 GHz
4 GB RAM 4 GB RAM 2 GB RAM 2 GB RAM
256 MB Flash 256 MB Flash 256 MB Flash 256 MB Flash
 - - 128 GB SSD -
24 - 110 VDC 24 - 110 VDC 24 - 110 VDC 24 - 110 VDC
 Bypass Relay Bypass Relay - -
GPS GPS GPS GPS

Downloads


Accessories

  • Antennas
  • Adapters
  • Cables
  • Power supply

Evaluation Kit

Evaluation Kit for Wireless Gateway CyBox GW-P

Wireless Gateway

CYGWP-1050

with 2 x LTE, 3 x Wi-Fi, 512 GB SSD and Quad-Core CPU
including all necessary accessories

  • Antennas
  • Adapters
  • Cabels
  • Power supply
